Visionary E10 5MP Ultra HD Wireless Manhole Camera
Visionary E10 is equipped with a 5MP ultra-high-definition camera, specially designed for septic tanks and residential pipeline inspection. It integrates a camera host, 11.5-inch tablet controller, 3-5 meter/10-16 feet carbon fiber pole, J-type probe, and long-lasting battery, enabling wireless real-time transmission and high-definition monitoring. Its compact and portable design, simple operation, and comprehensive functionality meet the needs for efficient and precise inspections.
Key Features
Ultra-high-definition Imaging
Equipped with a 5-megapixel PTZ
camera to ensure clear and detailed
images

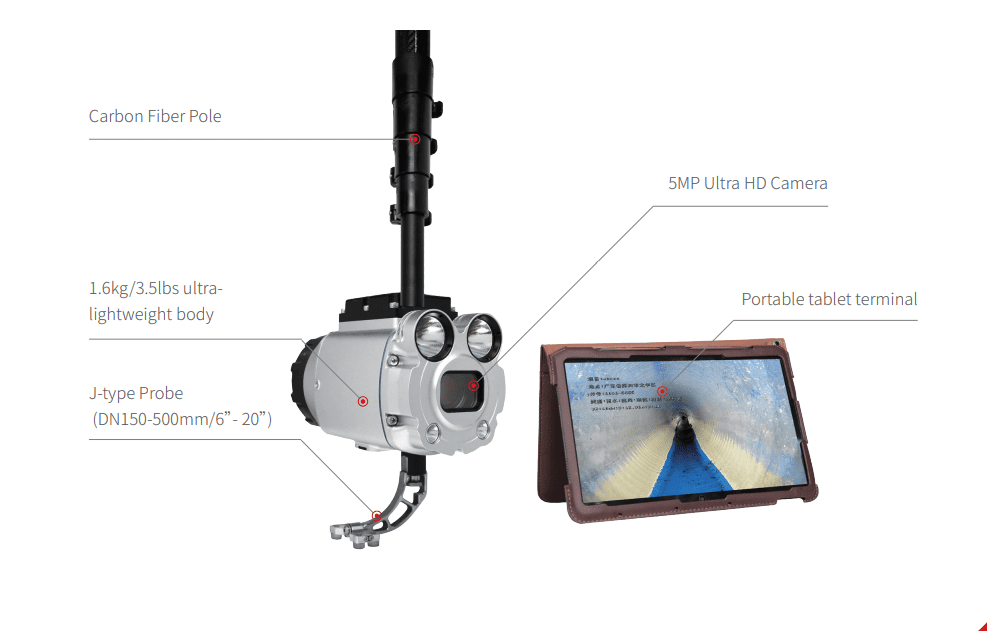

Integrated Portable Design
Weighing only 1.6kg/3.5lbs, the ultra-lightweight body is compact and easy to carry to
various inspection sites
Wireless Communication and HD Monitoring
Equipped with WIFI HD wireless transmission technology and tablet control, making
it easy and convenient to operate
Electric Tilt
Electric tilt adjustment of +45° upwards and -90° downwards, with one-click reset,easily adapting to detection needs at different angles
High Protection Level and Long-lasting Battery
With an IP68 protection rating, the device ensures stable operation in various harsh
environments. Equipped with three long-lasting batteries, it provides extended endurance
to meet long-duration inspection needs
Versatility
Designed for septic tanks and small
diameter pipelines in residential areas, it
offers broad applicability and meets the
needs of various inspection scenarios
Key Specs
| Camera | |
| Applicable Diameter Range | DN150/6” - DN1000/39” |
|---|---|
| Operating Temperature | -10°C/14°F - 55°C/131°F |
| Protection Rating | IP68 |
| Composite Light Source | 4×2W LED lights, neutral white |
| Zoom | Optical 12x × Digital 16x |
| Resolution | 2560×1920, 5MP |
| Pan-Tilt Control | Up: 45°, Down: 90°, One-touch reset |
| Body Size | 175mm/6.9”×100mm/3.9”×120mm/4.7” |
| Body Weight | 1.6kg/3.5 lbs |
| Electric Anti-Fogging | Yes |
| Tablet | |
| Operating Memory | 8GB |
|---|---|
| Storage Capacity | 256GB |
| Storage Expansion | Supports Micro SD (TF) card, up to 512GB |
| Control Software | Built-in inspection control software |
| Processor | Octa-core |
| Accessories | |
| Carbon Fiber Pole | Maximum extension 5m/16ft, standard length 3m/10ft |
| J-type Probe | Adjustable range DN150/6” - DN500/20” |
| Battery Capacity | Single 3500mAh |
| Battery Life | Standard with 3 batteries, continuous operation for 6 hours |
| Charger Input | AC100-240V~50/60Hz |
| Charger Output | DC16.8V~2.0A |
| Camera | |
| Applicable Diameter Range | DN150/6” - DN1000/39” |
|---|---|
| Operating Temperature | -10°C/14°F - 55°C/131°F |
| Protection Rating | IP68 |
| Composite Light Source | 4×2W LED lights, neutral white |
| Zoom | Optical 12x × Digital 16x |
| Resolution | 2560×1920, 5MP |
| Pan-Tilt Control | Up: 45°, Down: 90°, One-touch reset |
| Body Size | 175mm/6.9”×100mm/3.9”×120mm/4.7” |
| Body Weight | 1.6kg/3.5 lbs |
| Electric Anti-Fogging | Yes |
| Tablet | |
| Operating Memory | 8GB |
|---|---|
| Storage Capacity | 256GB |
| Storage Expansion | Supports Micro SD (TF) card, up to 512GB |
| Control Software | Built-in inspection control software |
| Processor | Octa-core |
| Accessories | |
| Carbon Fiber Pole | Maximum extension 5m/16ft, standard length 3m/10ft |
|---|---|
| J-type Probe | Adjustable range DN150/6” - DN500/20” |
| Battery Capacity | Single 3500mAh |
| Battery Life | Standard with 3 batteries, continuous operation for 6 hours |
| Charger Input | AC100-240V~50/60Hz |
| Charger Output | DC16.8V~2.0A |
Use Cases and Closeup

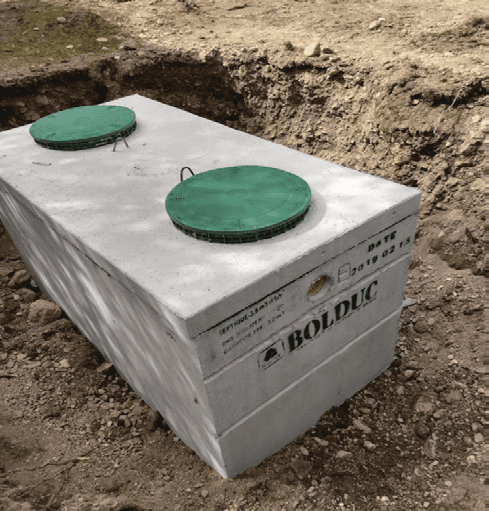

Septic Tanks

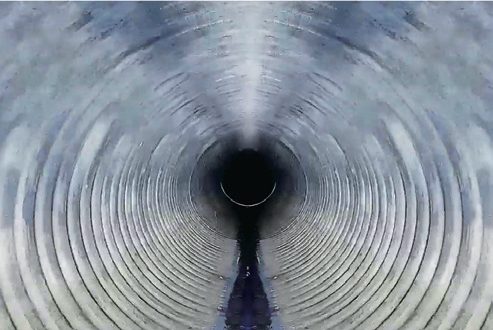

Residential Small Diameter
Compact and Portable

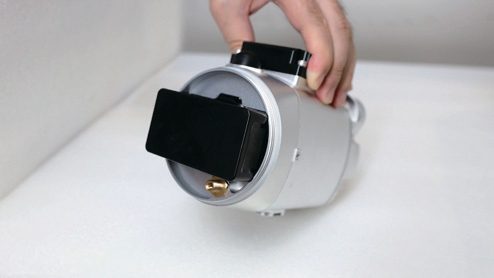

Detachable Battery for
Worry-free Endurance
